GSCI PVS-31C-MOD with Photonis 4G White Phosphor, Autogating & MCG

Load image into Gallery viewer, GSCI PVS-31C-MOD with Photonis 4G White Phosphor, Autogating & MCG

GSCI PVS-31C-MOD with Photonis 4G White Phosphor, Autogating & MCG

Regular price: $500.00
Unit price: per

Shipping calculated at checkout.

Order Selection

Down-Payment of $500.00 (READ DESCRIPTION) Full Payment of $24,365.00 Upgrade Standard Optics to GCSI VIVID MILSPEC Lightweight $1,500.00

Quantity

Quantity must be 1 or more

PREMIUM PRODUCTS

FREE EXPEDITED SHIPPING OVER $199

ELITE CUSTOMER SERVICE

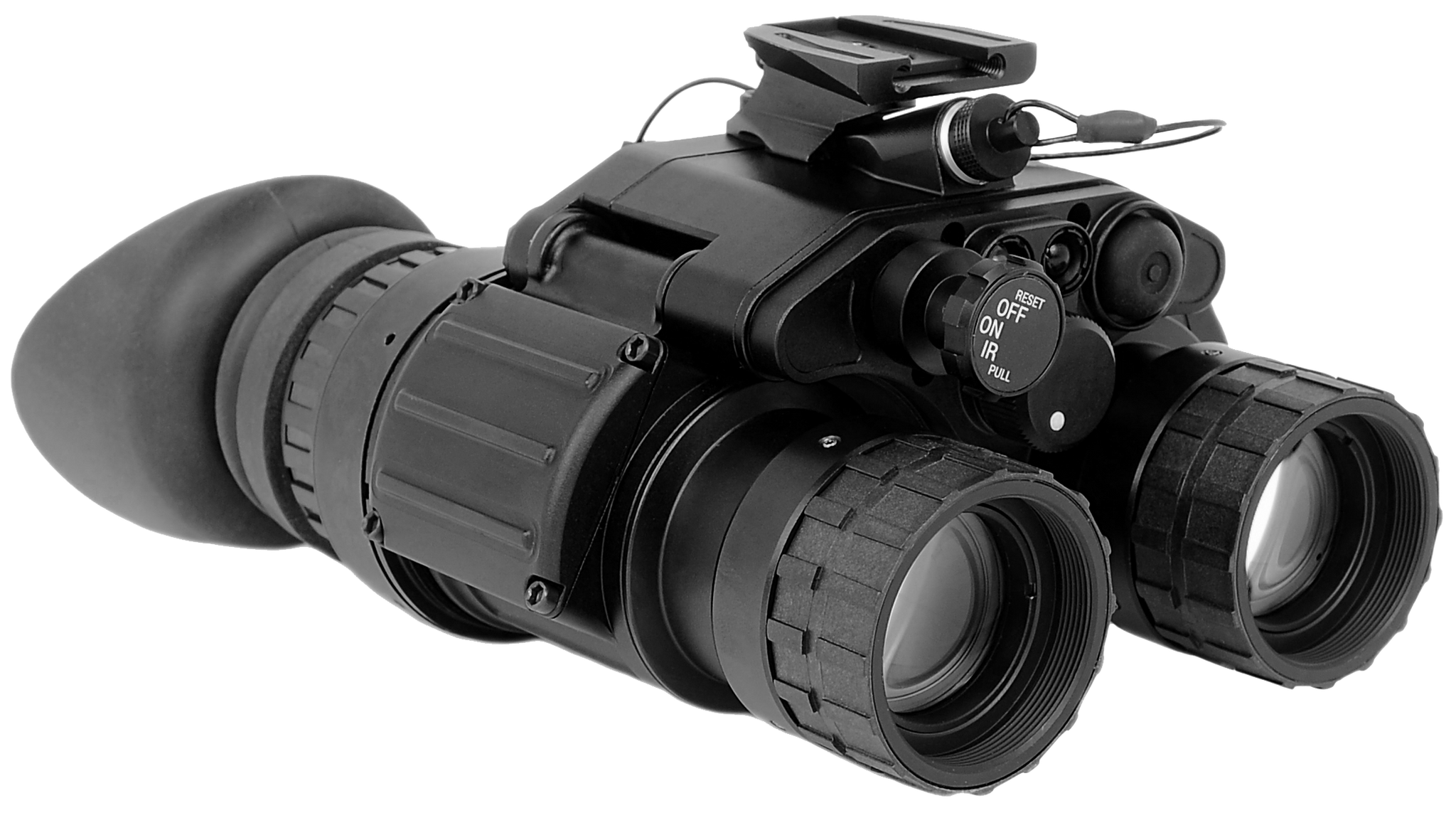

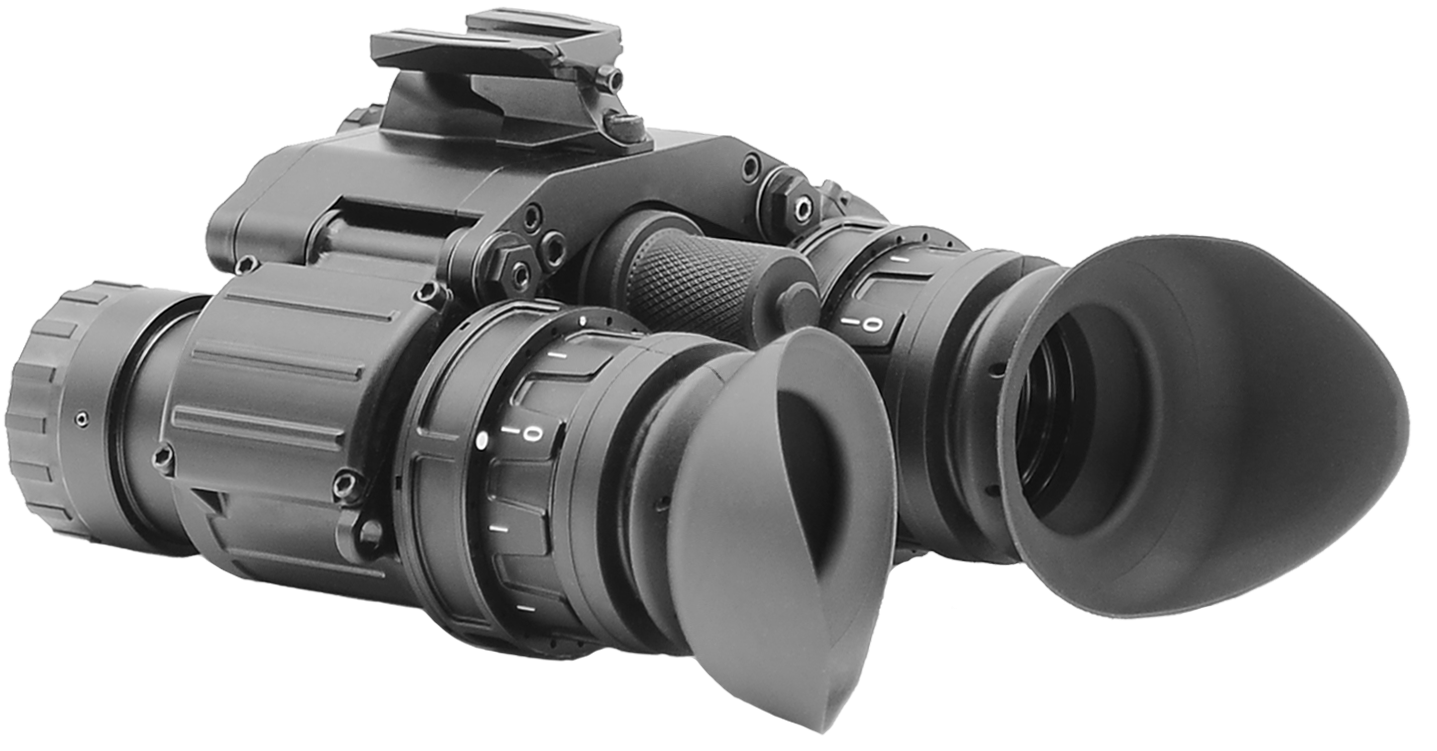

Experience the superior situational awareness of the PVS-31C-MOD, proudly made by GSCI Advanced Photonics.

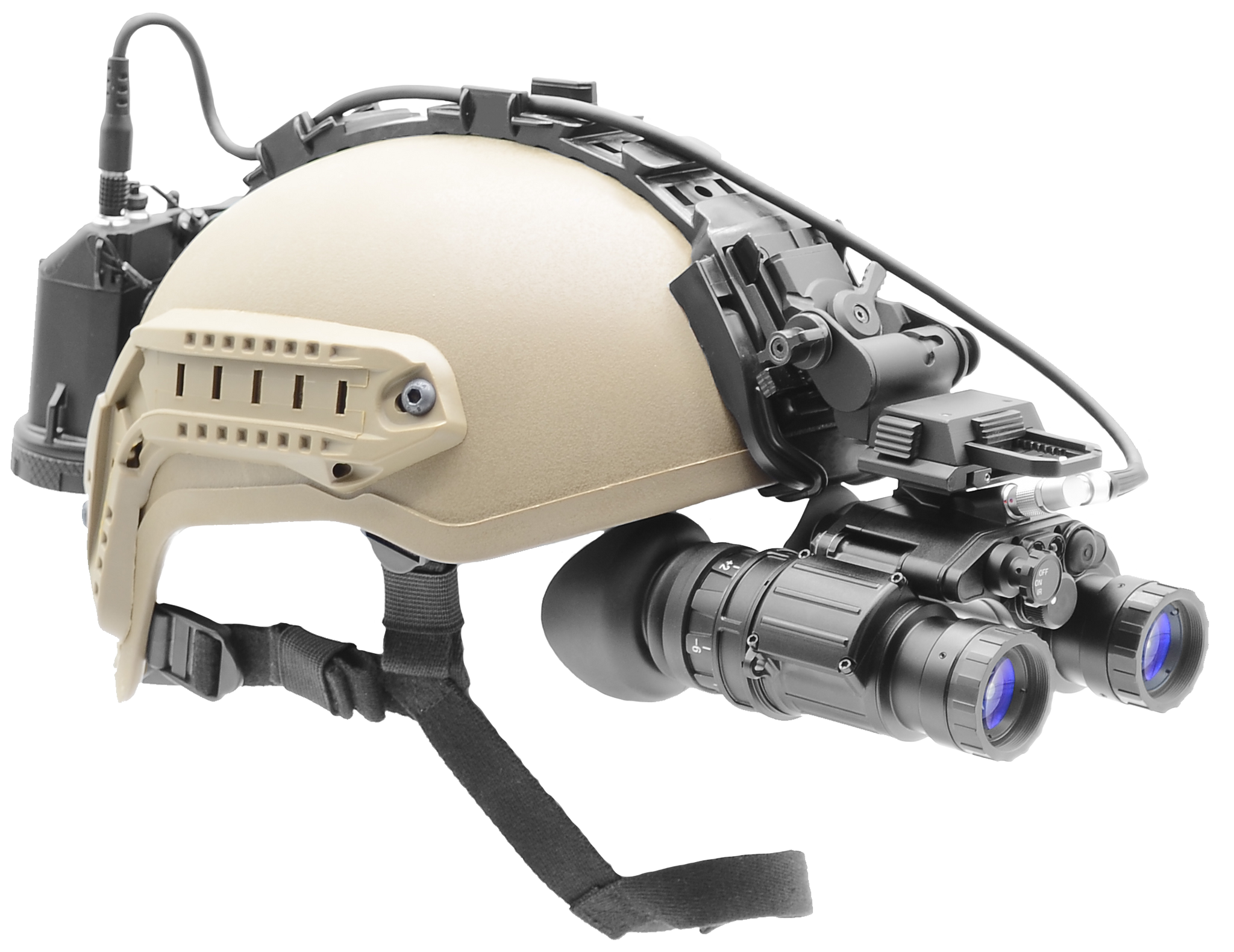

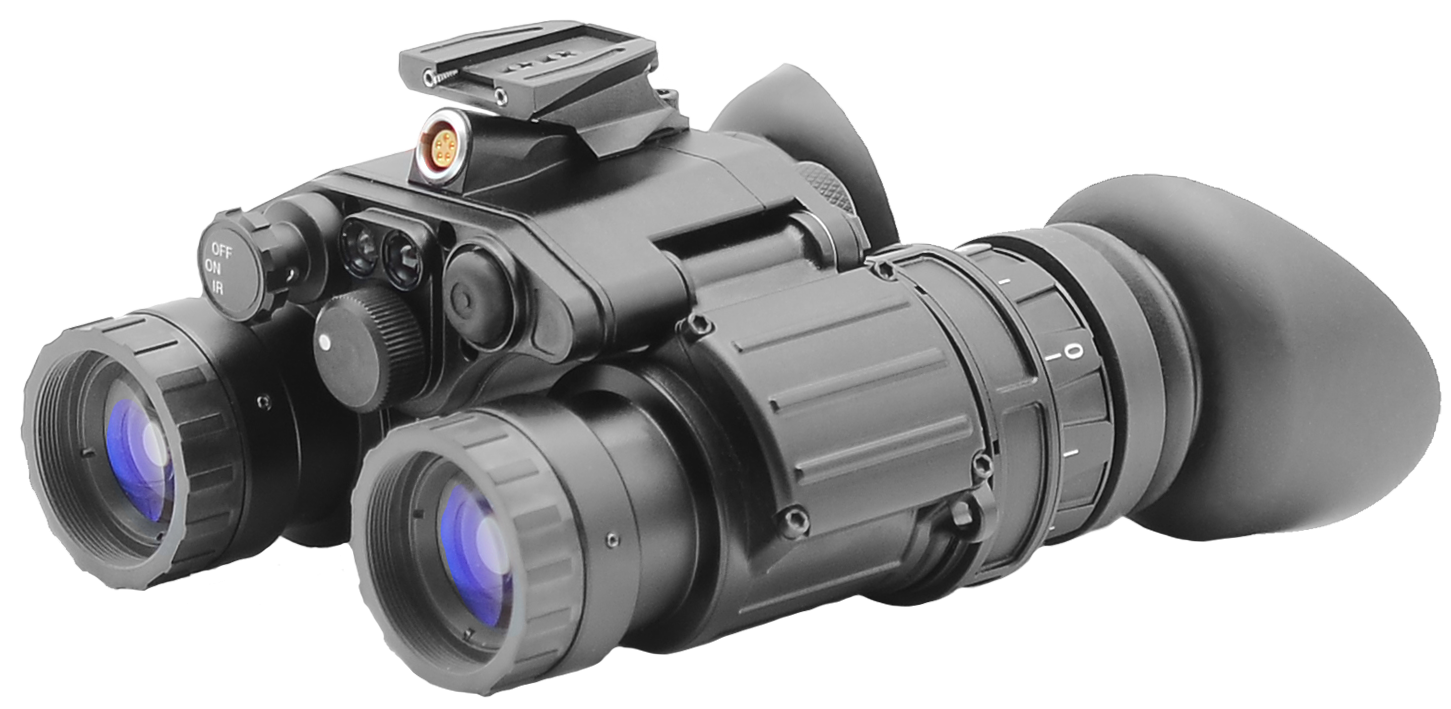

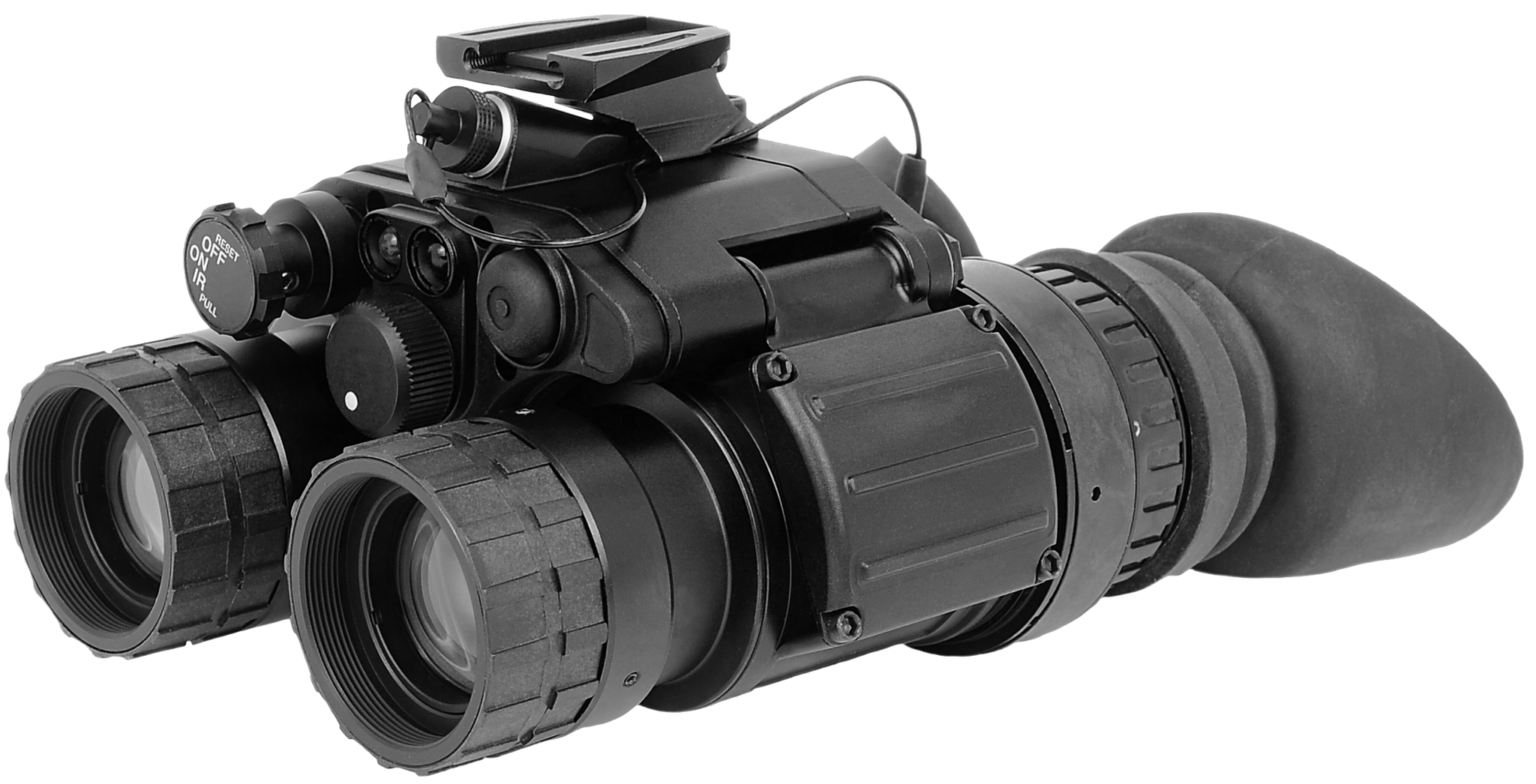

This dual-tube goggle system has an ergonomic low-profile design and is equipped with the latest technological advancements and perfected over 30 years of GSCI’s engineering experience. Built for durability, it includes a lightweight and rugged housing combined with advanced multi-coated optics for exceptional image quality and can withstand up to the weight of a pick-up truck and a drop from two meters.

This unit comes with Autogating, Manual Gain Control and an external power port. White Phosphor Photonis 4G Intensifier Tubes with 2300+ FOM, Stow Safety Feature and built in 950nm IR Illuminator are also included.

Replacing standard Optics (eyepieces and objective lenses) with GSCI-VIVID MIL-SPEC Lightweight Optics for $1,500.00 is an available option.

Other unique operational features, such as instant IR (Morse Code Capability), standard IR (Map Reading / Zero Light Capability), external battery power port, flip-up off, selective channel engagement and stow safety provide remarkable performance and reliability.

With numerous optional accessories such as magnification lenses, head mounting systems, battery packs (including the MVP-240) and recording devices - it can also accept 1xAA and 1xCR123 batteries - you will find this NVG to be the primary choice of multiple users including law enforcement and military agencies worldwide.

Spec Sheet: PVS-31C-MOD

READ CAREFULLY: All GSCI products are made to order, with a lead time of 8-10 weeks unless clarified in advance.

Upon ordering this product, a down payment of $500 CAD is required to generate the order. The balance can then be paid via ACH, Wire Transfer or E-Transfer prior to the build process commencing.

We will email you once the order is in to arrange everything and keep you up to date as your premium optic is being built and shipped.

These units are made in Canada and are non-ITAR, therefore eligible for orders from our clients and partners in the U.S.A. and beyond (Note international purchasers are responsible for customs clearance fees, and all purchasers are responsible for any additional shipping insurance requested.)

TECHNICAL DATA ^‡
Optical Magnification	1X
Objective Lens Focal Length	27mm
Field Of View ^‡‡	40°
Focusing Range	0.25m .. Infinity
Diopter Adjustment Range	-6 .. +2
Interpupillary Adjustment	50mm .. 90mm
Built-In IR Illuminator	Yes, 950nm
Momentary IR-On Button	Yes
IR-On Indicator	Yes
Manual Gain Control (MGC)	Optional
3-Position Switch	Yes: Off / On / IR
Bright Light Protection	Yes
Bright Light Sensor	Yes
Low Battery Indicator	Yes: concealed into FOV
Stow Safety Feature	Yes

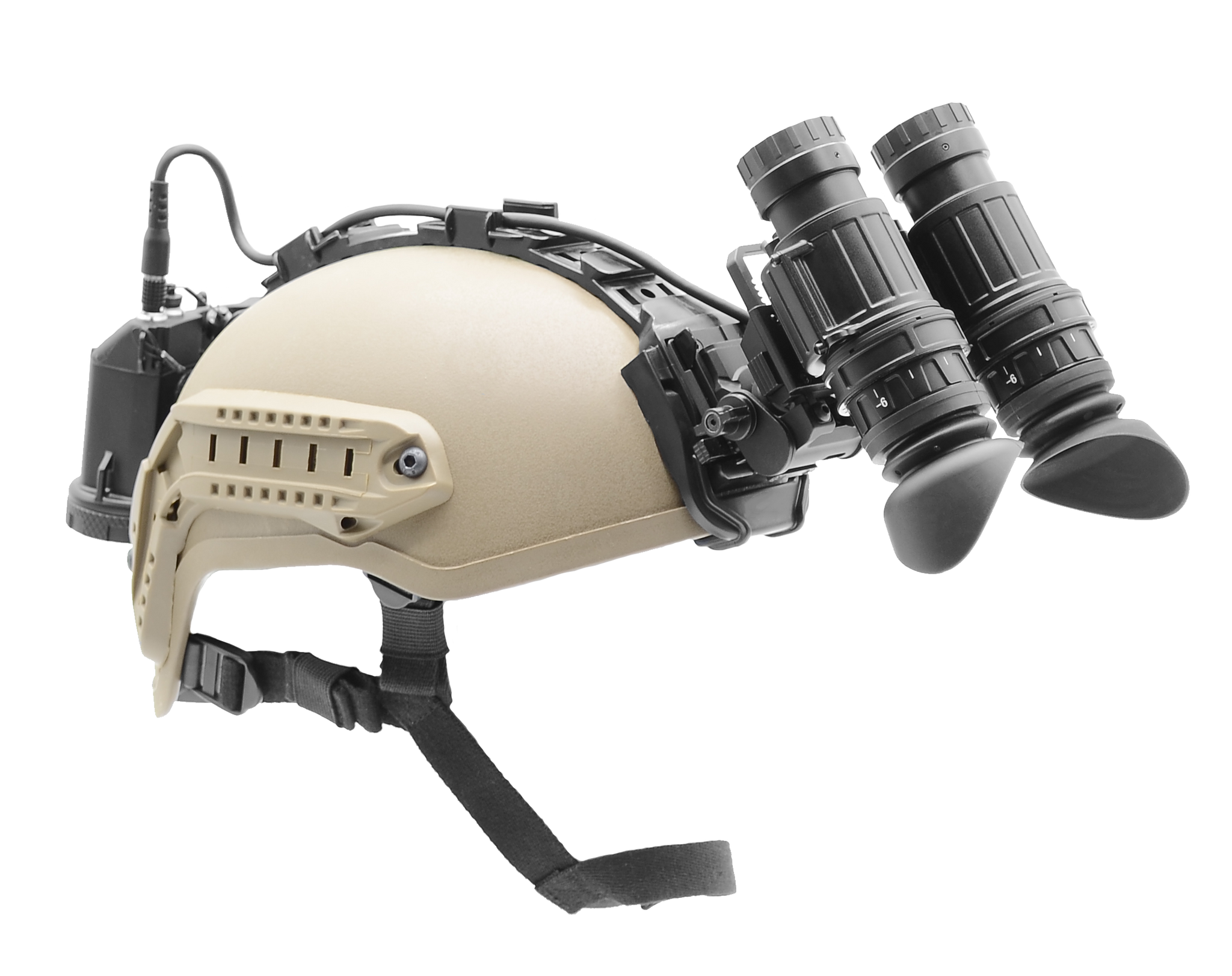

Flip-Up-Off Feature	Yes
Selective Channel Engagement	Yes
Power Source *	1pc AA / 1pc CR123 / MVP-240
Battery Life on 1x AA / 1x CR123	40 Hours
Battery Life on MVP-240	240 Hours
External Power Supply	4VDC .. 15VDC
Environmental Protection	Waterproof
Dimensions	108x105x70mm
Weight **	465 grams
Operating Temperature	-40°C .. +50°C
Made In Canada	ITAR-Free

‡ Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes.

‡‡ Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube

* Batteries not included

** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications.
